代理接觸|鵬控機電|PG-X+手持式接觸角測量儀
國外原裝進口全新正品,可選擇安裝中、日、英等版本。
品牌:原裝全新正品 型號:PG-X+類型:其他可測樣品狀態:平面測量范圍:0~180度適用范圍:0~180度加工定制:否外形尺寸:90x55x90mmmm重量:0.4kg

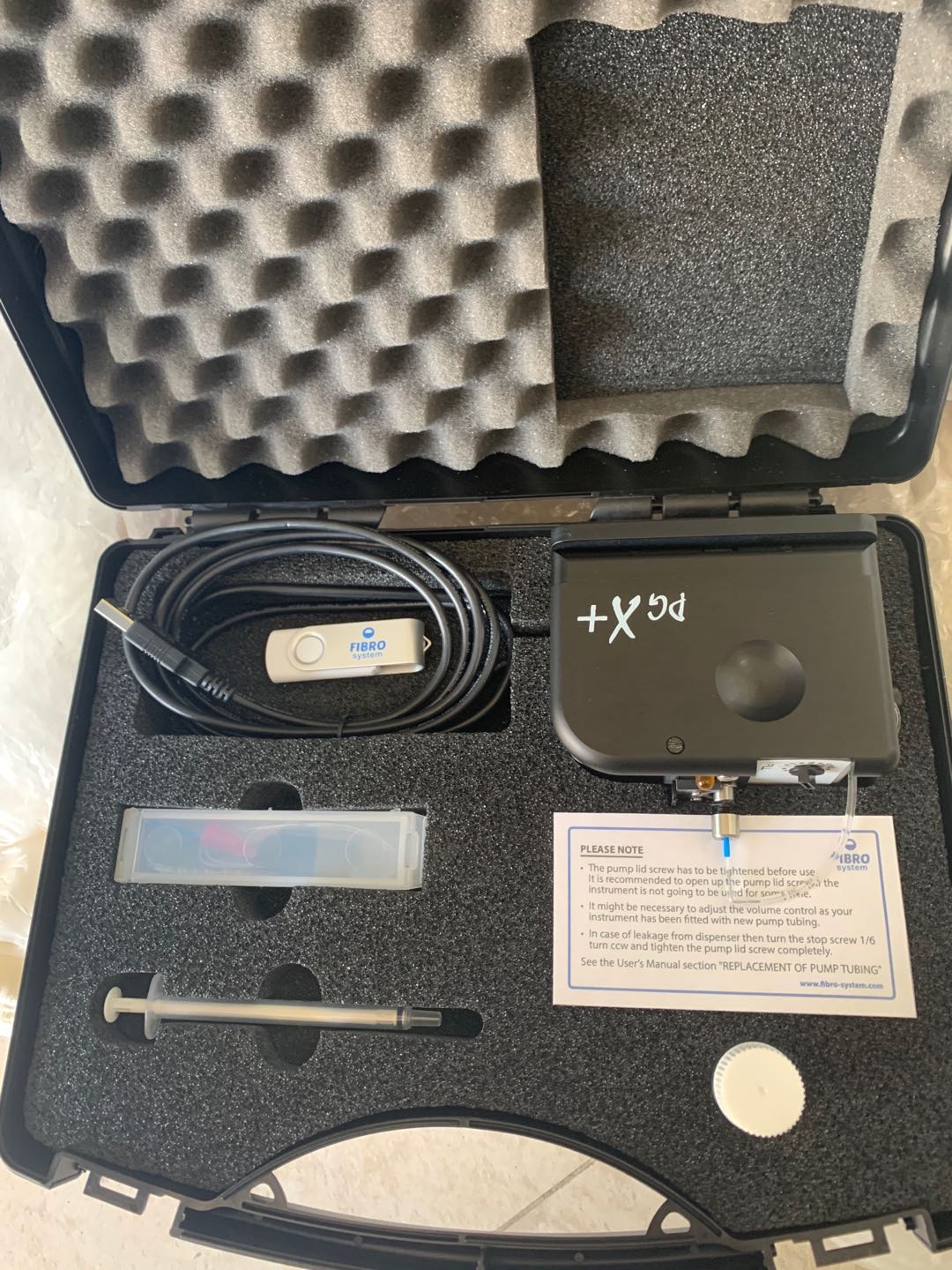

PGX+ contact angle analyser - Pocket Goniometer
The PGX+ Pocket Goniometer, measures contact angle (dynamic and static), surface tension, and surface energy. According to the size that is set, the PGX+ makes a drop in μl. That drop is automatically released and 80 images per second are made. The instrument can be used for paper & board, solar cell panels, windshields, metal cylinders and similar surfaces. For most tests deionized water is used. However using other liquids is also possible.
The PGX+ is the ideal instrument to perform dynamic tests like absorption tests. During a test, the apparatus is connected to the computer. Special software gives an accessible overview of the possible tests, giving the operator full control. Droplet size, method of deposit, start delay, and sample rate are just some of the adjustable parameters.
Analysis
After the test; test data are immediately transferred to the computer. Pictures and data can be stored and analyzed. This direct feedback allows for quickly adjusting the test set-up. Adjustments to improve the results can be made instantly. The test results can provide insight into the level of contamination, adhesion, surface energy, and printability of a surface.
Features
Easy to handle,small sized
Full control of the test
No sample preparation
Registration with 80 frames/second
Static and Dynamic ContactAngle, Surface“free”
Energy,SurfaceTension
Multiple test fluids possible
Runs on every Windows computer
Power from USB connection
Product details
Dimensions
90 x 55 x 90 mm (L x W x H)
Weight
500 grams
Simple and accurant calibration routine
Captures 80 images per second
Liquid size: 0,5–10 microliter
Results: Images and statistics
PGX+software Included
Changing fluids: Possible
Applications
Industry
Paper, printing, pharmacy, wood, metals, cosmetics, textile,coatings, ...
International standards
PGX+ Pocket Goniometer conforms to all major international standards, including ASTM D724, Standard test for surface wettability of paper (Angle of contact method), and ASTM D5946, Standard test for Corona treated polymer films using water contact angle measurements.
特點:
1)操作方式:自動,手動
2)將機器放在測量物體上即可測量;
3)USB電源;
4)尺寸LWH:90x55x90mm;重量:凈重400g;
5)可測量靜態接觸角、動態接觸角、表面張力、前進接觸角,后退接觸角,表面自由能、(增加/減少角度);
6)最小滴水量0.2ul,減少重力影響.
7)可對應純水之外其它藥液
8)可用于TFT-LCD行業
